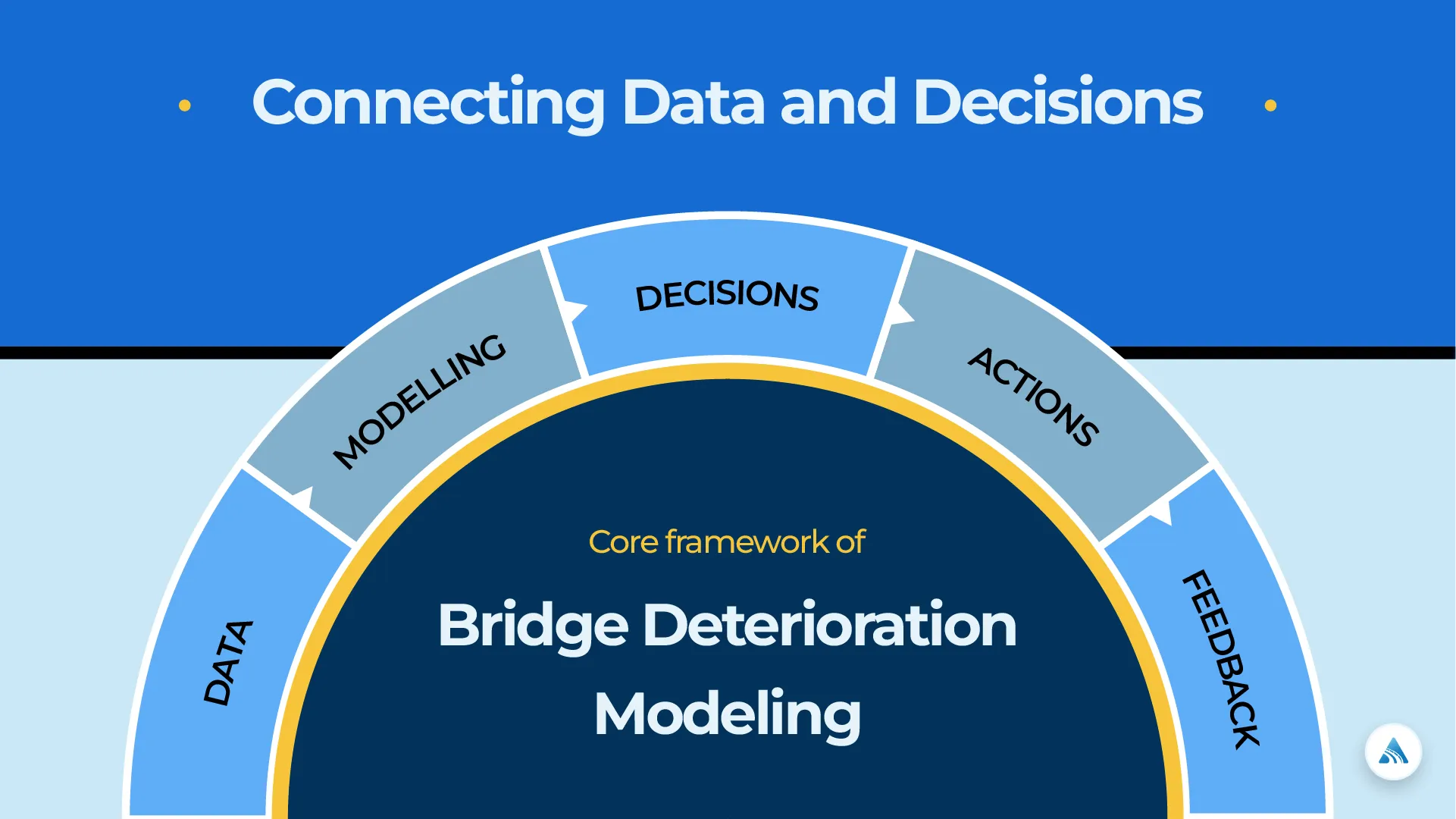

Executive Summary One of the critical components of a Bridge Management System is Bridge deterioration modeling. This is because it allows bridge engineers to predict future bridge conditions and plan maintenance accordingly and effectively. For the most part, bridge deterioration is a consequence of corrosion, cracking, fatigue, and scour, and is often affected by environmental factors, material properties, structural type, load patterns, and aging.
For this purpose, bridge deterioration models use inspection data to analyze condition progression over time. For reliable modeling, clean, comprehensive inspection datasets and careful assessment are required. AssetIntel™ brings in its advanced tool, manageX™, which helps automate data preparation and model generation. In particular, bridge engineers can make the best of these tools or the accurate deterioration models to improve data precision, make lifecycle-optimized decisions, initiate realistic budgeting, and perform proactive maintenance. Eventually, it leads to bridge service life extension and infrastructure resilience enhancement.
What is Bridge Deterioration? Bridge deterioration is the gradual decline in the structural integrity and performance of bridge components with time. This degradation results from the combined effects of environmental exposure, material aging, loading conditions, and design characteristics. In the long run, bridge deterioration leads to reduced strength, serviceability, and safety if not addressed through timely maintenance actions.
This Progressive Decline Can Appear In Several Ways, Each Affecting Bridge Performance Differently.

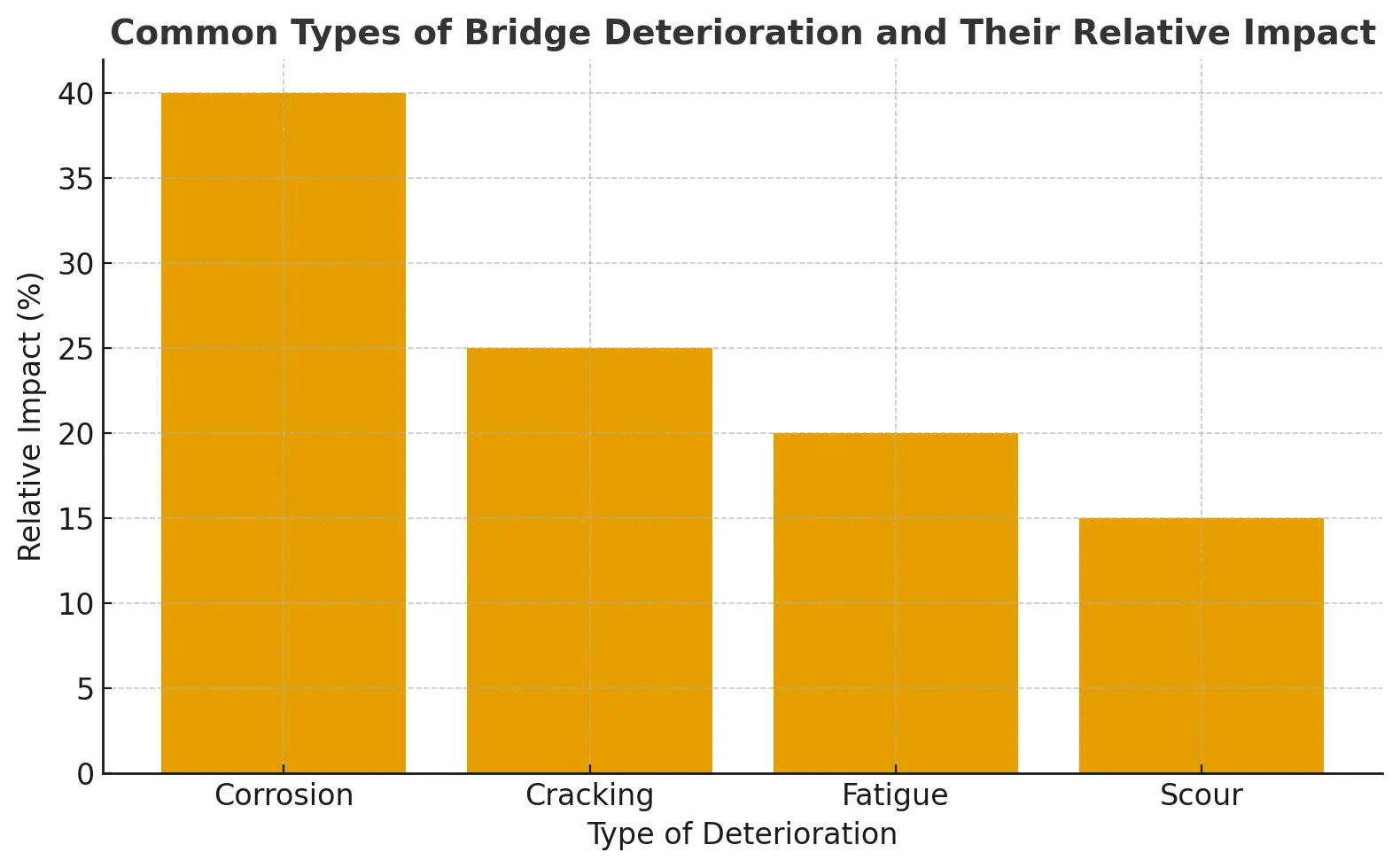

Some of the most common types of bridge deterioration are listed below.
Corrosion : It is a chemical reaction that happens between metal components and environmental elements. For the most part, corrosion leads to material degradation.Cracking : This type of bridge deterioration can develop due to stress, temperature changes, or material fatigue.Fatigue : Fatigue arises from repeated loading and unloading cycles. This type of bridge deterioration can weaken materials and result in failure over time.Scour : Bridge Scour stands for the erosion or removal of sediment, soil, or rock around bridge or culvert foundations or abutments. This is primarily caused by high water flow.These Deterioration Types Are Symptoms Of Deeper, Interrelated Factors That Govern How And When Bridges Degrade.

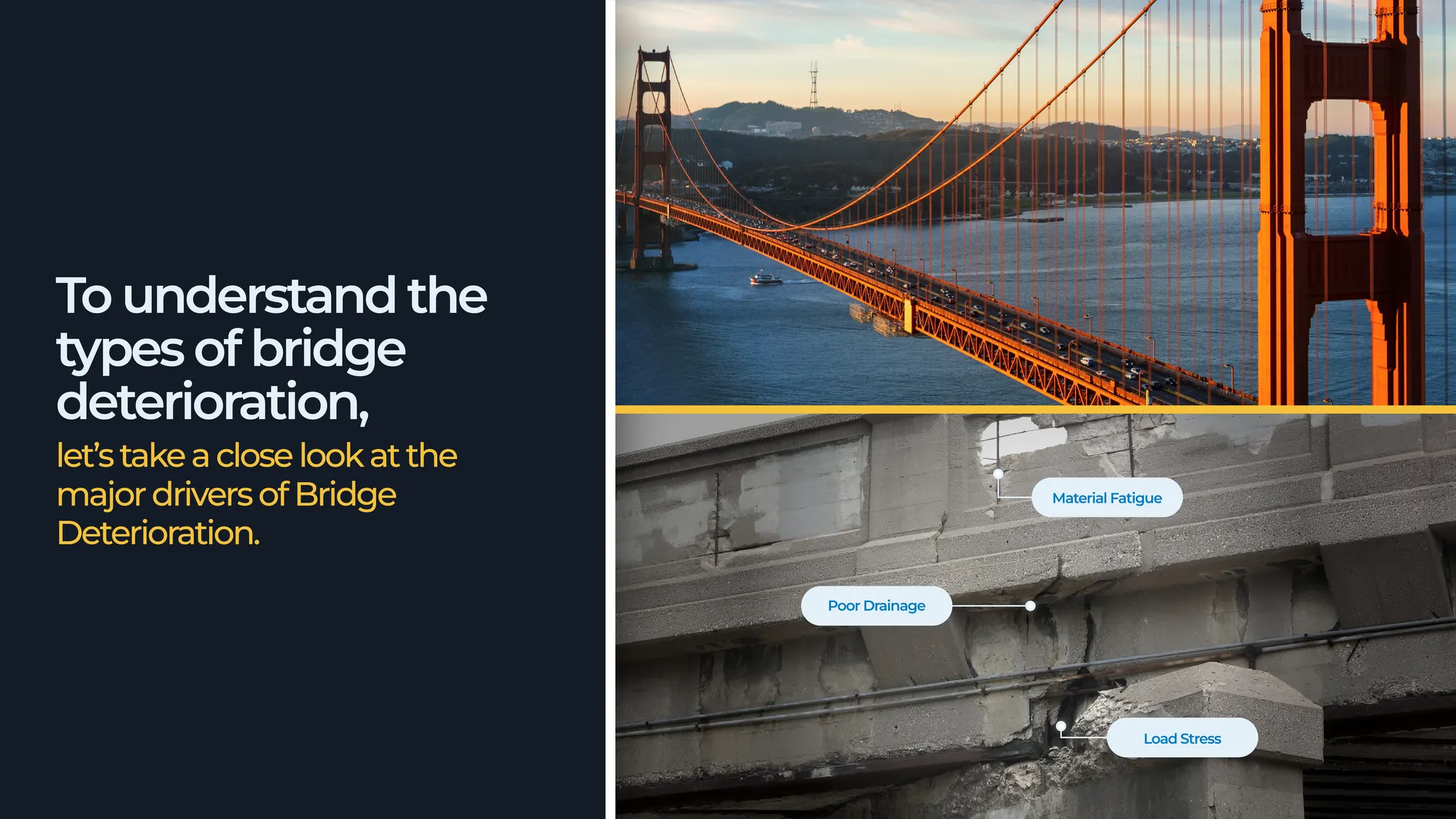

To understand the types of bridge deterioration, let’s take a close look at the major drivers of Bridge Deterioration. Environmental Factors Critical weather conditions, such as rain, snow, and temperature fluctuations, often accelerate bridge deterioration.
For example, freeze-thaw cycles or frost action weathering can cause significant damage to concrete bridges. In addition, the combined impact of debris buildup, water infiltration, and restricted joint movement creates a trapped, moisture-rich microenvironment around bridge joints. This accelerates corrosion, weakens protective coatings, and traps chlorides and other contaminants. In such cases, it leads to faster material degradation, joint seal failure, and progressive deterioration of adjacent structural components over time. Also, bridges over waterways, especially those over sea salt water, are prone to faster deterioration than bridges at grade separations.
Properties of the Materials Used Likewise, the choice of construction materials plays a critical role in long-term bridge performance. For example, high-performance concrete is considered to offer greater resistance to cracking, chloride penetration, and freeze–thaw cycles compared to conventional mixes. By reducing permeability and enhancing structural integrity, the right selection of materials helps extend service life and reduce bridge deterioration under harsh environmental conditions.
Structural Type The structural configuration of a bridge directly affects its load distribution, stress concentrations, and vulnerability to bridge deterioration. For example, skewed bridges introduce complex load paths and amplify torsional forces, increasing fatigue and cracking risks. Similarly, structure types with expansion joints often create localized microenvironments. In these structural types, moisture, debris, and chlorides accumulate and accelerate corrosion and material degradation. Under these circumstances, comprehending these structural effects is important for accurately modeling deterioration and developing targeted maintenance strategies.
Load and Usage Patterns Increasing traffic volumes and heavier vehicle loads amplify mechanical stress on bridge components. This often results in fatigue, cracking, and surface wear. Originally, structures designed for lower load capacities experience amplified strain, which leads to faster degradation of decks, joints, and bearings. Over time, this factor behind bridge deterioration leaves a lasting impact, shortening service life and increasing maintenance and rehabilitation demands.
Aging of the Structure Aging is a fundamental driver of bridge deterioration. As materials gradually lose strength, flexibility, and resistance to environmental stressors over time, the bridge deteriorates. Prolonged exposure to load cycles, moisture, temperature fluctuations, and chemical agents often weakens structural elements. For the most part, aging makes the bridges more susceptible to cracking, corrosion, and other forms of damage that compromise their performance and safety.
Hydrological Factors For culverts or bridges over water, water or hydraulic conditions play a vital role in deterioration. High water flow velocities increase abrasion and scour potential. This results in erosion of the structural surfaces and foundations. In addition, sediment accumulation changes flow patterns, trapping moisture and debris that speeds up material degradation. Also, water flow obstructions, such as debris or vegetation, create turbulent zones and pressure fluctuations, further stressing culvert walls and joints. In due course, these combined effects lead to cracking, undermining, or structural instability if not managed efficiently and proactively.
As Bridge Deterioration Is Affected By Multiple, Interacting Variables, Empirical Observation Alone Is Insufficient For Long-Term Planning. Bridge Deterioration Modeling Bridges This Gap By Translating Inspection Data Into Predictive Insights.
Significance of Bridge Deterioration Modeling Bridge deterioration models are models that help predict the condition of bridge members, either components or elements, over the course of time, if no condition-improving action is performed upon them. Notably, bridge deterioration models are an important part of a Bridge Management System (BMS). This is because bridge deterioration modeling provides predictions for the future condition of structures, based on which a Bridge Management System identifies optimal maintenance, repair, or rehabilitation actions, and helps conduct lifecycle planning.

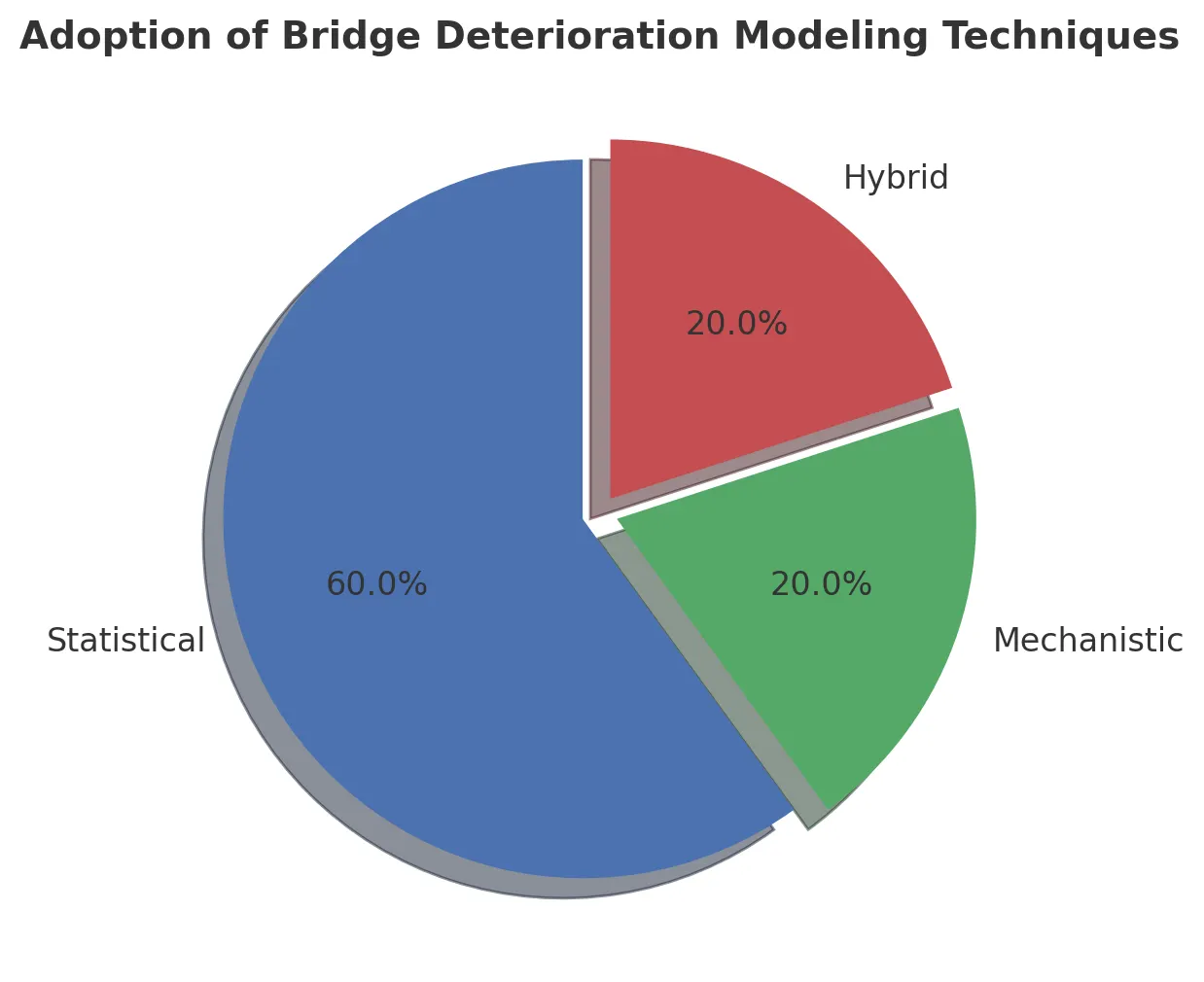

While various modeling techniques exist to simulate bridge deterioration, each offers unique advantages. For example, statistical bridge deterioration modeling uses historical data to forecast future deterioration based on observed trends. On the contrary, mechanistic bridge deterioration modeling focuses on the physical processes affecting materials. For the most part, it provides detailed insights into their behavior under stress.
However, mechanistic models are not widely adopted in the area of bridge management, mainly because of the complexity of these bridge deterioration models and the extensive data requirements for developing these models.
Also, there is a hybrid bridge deterioration model combining both statistical and mechanistic approaches.

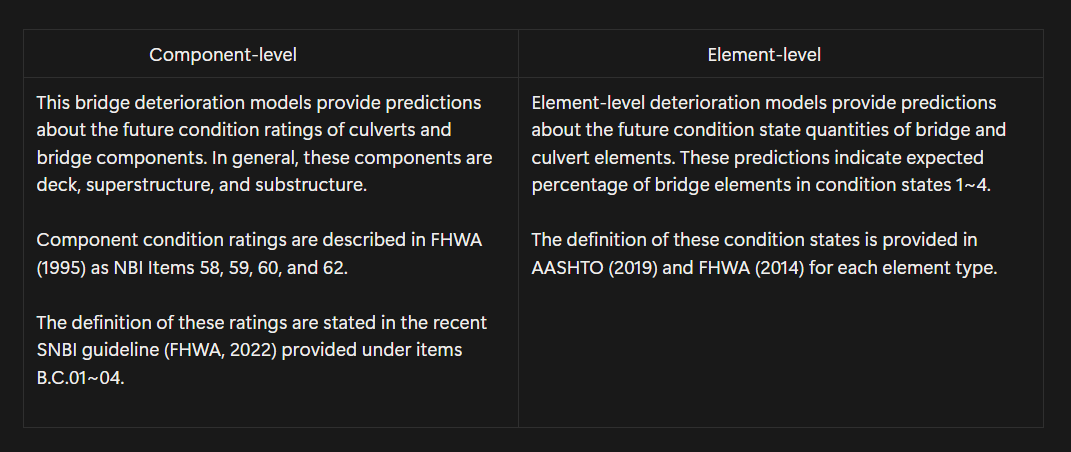

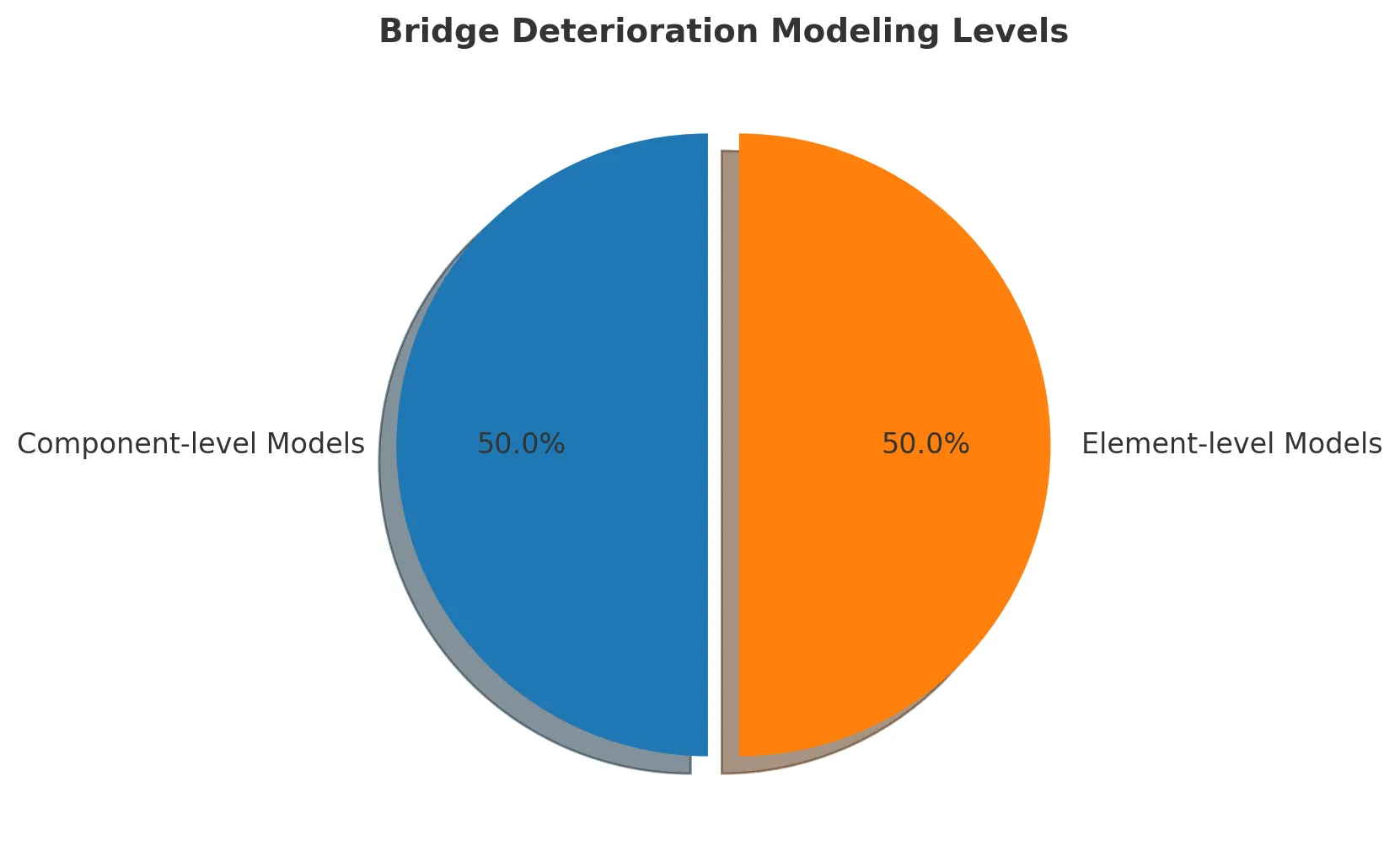

To Effectively Capture The Varying Scales Of Bridge Degradation, These Models Are Developed At Different Levels Of Detail.
Let’s study these bridge deterioration models at the component-level and element-level closely. Maintenance, Repair, and Rehabilitation (MR&R) are essential for preserving a bridge’s safety, functionality, and longevity. Through timely maintenance, corrective repairs, and targeted rehabilitation, MR&R ensures bridges continue to perform reliably throughout their lifecycle.
A Closer Look At Bridge Deterioration Models Reveals How Different Modeling Approaches Translate Inspection Data Into Actionable Forecasts.

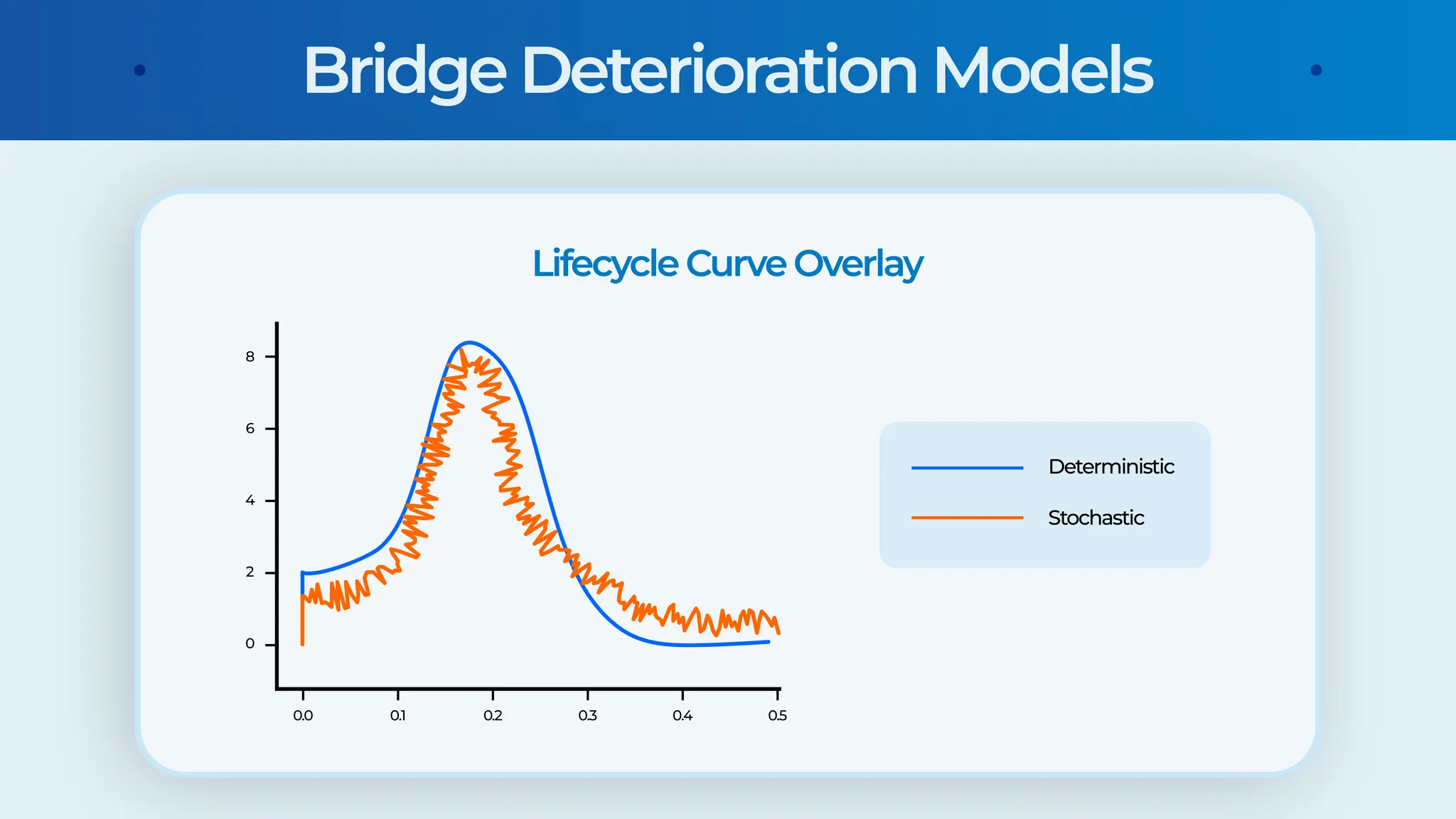

Bridge Deterioration Models In general, bridge deterioration models use deterministic or stochastic approaches to forecast how bridge components degrade over time. While deterministic bridge deterioration models provide fixed outcomes, stochastic models are preferred for uncertainty, variability, and probabilistic behavior in bridge deterioration rates.
Deterministic Models: This bridge deterioration model creates fixed deterioration curves based on historical data. For the most part, it allows for straightforward predictions of bridge conditions.Stochastic Models : This bridge deterioration model is generated from stochastic models such as the Markov Chain Transition Probability method or some Machine Learning methods. This model helps estimate the likelihood of a bridge member in specific conditions over time. Bridge engineers use this method to incorporate miscellaneous components, which provides an understanding of variability in bridge conditions.Building On These Deterministic And Stochastic Approaches, Several Established Methods Have Been Employed To Develop Practical And Reliable Deterioration Models.
Methods for Developing Bridge Deterioration Models Particularly, multiple methods exist for developing bridge deterioration models. These include statistical analyses, mechanistic-empirical methods, and machine learning techniques. For the most part, these methods help identify degradation patterns, predict future conditions, and support informed maintenance and rehabilitation decisions.
Some common methods for bridge deterioration models are mentioned here.
Age-Based Method : This method for developing a bridge deterioration model compares the ages of bridges in condition ratings to develop deterioration curves. In general, this method is more suitable for component-level bridge deterioration modeling.Time in Condition Rating (TICR) Method : Generally, this method helps measure how long bridge components remain in a specific condition rating before deteriorating. For the most part, it offers a direct evaluation of time spent in each condition.Markov Chain Transition Probability (MCTP) Method : This method for developing bridge deterioration modeling counts how many components or element quantities stay in the same condition over a fixed time frame. Later, these counts are converted into transition probabilities, which indicate how likely components are to shift between condition states over time, enabling more accurate forecasting and strategic maintenance planning.Machine Learning (ML) Method : This method leverages advanced Machine Learning algorithms to predict future bridge conditions with greater precision. Assessing historical inspection data and relevant influencing factors helps estimate the most likely condition state or the likelihood of being in different condition levels at the next inspection cycle, supporting data-driven maintenance and planning decisions.Several Established Methods Are Used To Model Bridge Deterioration, Each With Distinct Strengths And Limitations.

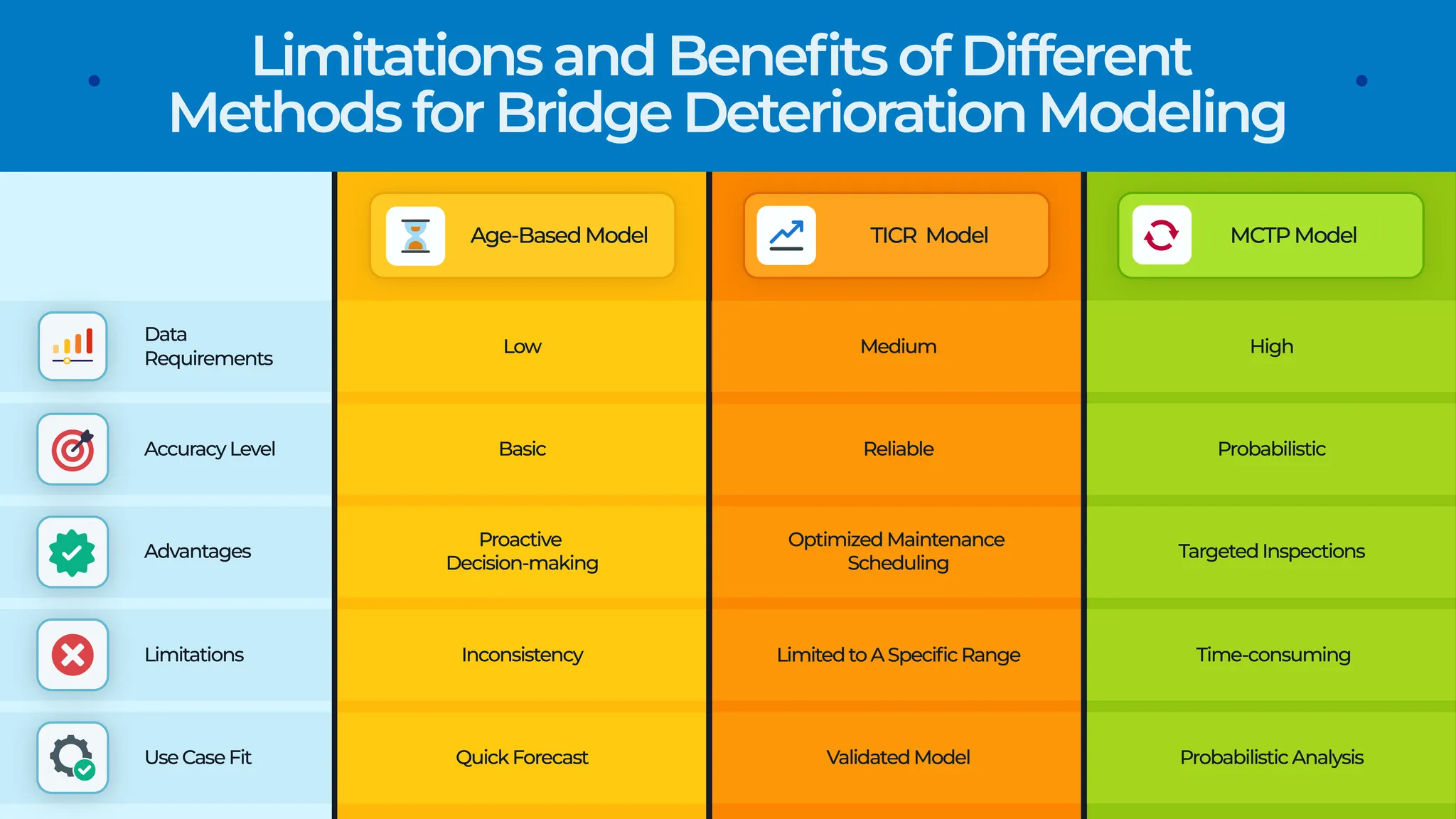

Limitations and Benefits of Different Methods for Bridge Deterioration Modeling In general, age-based bridge deterioration models are easy to develop. At a minimum, they can be developed with one year of data. For the most part, these models are developed by measuring the distribution and expected age of bridges at each condition, followed by a regression model.
Despite their simplified approach, these models only account for the effect of age in predicting the condition. Also, these models are considered inconsistent for bridges whose current condition is different from the model prediction at that age.
On the contrary, the TICR (Time in Condition Rating) ****method needs more historical data and a higher level of inspection data processing than the Age-based or the MCTP method for component-level deterioration modeling. Particularly, this process prepares reliable data to directly count the number of years a component has remained in a condition rating, which increases the accuracy and reliability of bridge deterioration models developed through the TICR method. Also, this bridge deterioration model method is quite popular among bridge managers as they can easily compare and validate the results of the deterioration models developed through this method with their evaluations.
One of the key benefits of the MCTP (Markov Chain Transition Probability) method is that it offers probabilistic predictions that account for the general fortuity in the deterioration process. These probabilities are turned to TICR for both elements and components. To reduce the stochasticity of the bridge deterioration models, MCTP models are rectified by explicitly considering age and effectiveness of protective members. Like the age-based bridge deterioration modeling method, the MCTP method can be developed with just one year of data. However, it is recommended to include more than one year of bridge inspection data for higher accuracy.
While the age-based and MCTP bridge deterioration modeling method approaches attempt to account for certain aspects. These aspects include the influence of structural age and protective components to minimize this uncertainty, bridge deterioration is rarely governed by these factors alone.
While Traditional Methods Provide Valuable Insights, Developing Reliable Deterioration Models Requires Careful Consideration Of Data Quality, Influencing Factors, And Preprocessing Steps To Ensure Accurate Predictions.
Data Considerations and Preparation for Bridge Deterioration Modeling Particularly, accurate bridge deterioration modeling begins with high-quality inspection data. Without clean, consistent, and well-prepared datasets, even the most advanced bridge deterioration modeling methods cannot deliver reliable and accurate predictions.
In addition, before developing a model, bridge managers must carefully explore, validate, and process inspection data to ensure it accurately reflects real-world conditions. Also, data preparation forms the foundation of effective bridge deterioration modeling, affecting the precision and applicability of methods ranging from simple age-based models to complex stochastic or machine-learning approaches.
For the most part, a reliable bridge deterioration model needs genuine bridge inspection data. To improve the accuracy of this data, bridge owners or engineers can perform data exploration and visualization to identify errors and clean them accordingly. In such cases, advanced platforms such as inspectX™ , are designed to automatically detect anomalous data and assist with the data cleaning process.
Moreover, developing bridge deterioration models requires processing the bridge inspection data to prepare it for further analysis, with the effort varying by method. For example, the Age-Based Method requires calculating the age of bridges at each condition rating, while the Time-in-Condition-Rating (TICR) Method involves directly calculating the TICR for each sample.
When using the TICR(Time In Condition Rating) method, multiple considerations ensure realistic and accurate outcomes. Bridge inspection databases have inherent limitations, particularly related to time coverage.
To address this, bridge managers may:
Disregard initial-year data until a change in condition is observed, which works well when extensive historical data exists. Include early-year data if the number of years in a condition exceeds a defined “clipping rule.” Apply a refined approach combining the clipping rule with a multiplier, estimating that, on average, half of the TICR occurred before the database start year. The TICR method can also account for minor one-level condition improvements but typically excludes data showing multiple improvements, as these often indicate rehabilitation interventions.
For the Markov Chain Transition Probability (MCTP) Method , data processing involves forming a transition matrix that tracks components or element quantities remaining in their current condition or degrading by one level. Simplifying assumptions, such as lumping multi-level deterioration transitions into a single step or disregarding improvements, are often applied. For greater predictive accuracy, different probability distributions, such as the Weibull Markov distribution, may incorporate factors like aging, environment, and protective measures.
Particularly, some major repairs do not directly increase condition ratings in the data. Consequently, bridge preservation efforts are indirectly reflected in deterioration models, usually through extended times in a given condition. For the most part, effective Bridge Management Systems (BMS), like AssetIntel™’s manageX™ , incorporate this effect by allowing users to assign decimal improvements to component condition ratings following preservation actions. This helps ensure long-term planning that reflects the true benefits of maintenance strategies.
With Inspection Data Properly Prepared and Key Considerations Addressed, Deterioration Models Can Now Be Applied Within Advanced BMS Platforms Like managex™ to Generate Actionable Predictions and Support Optimized Bridge Maintenance Strategies.

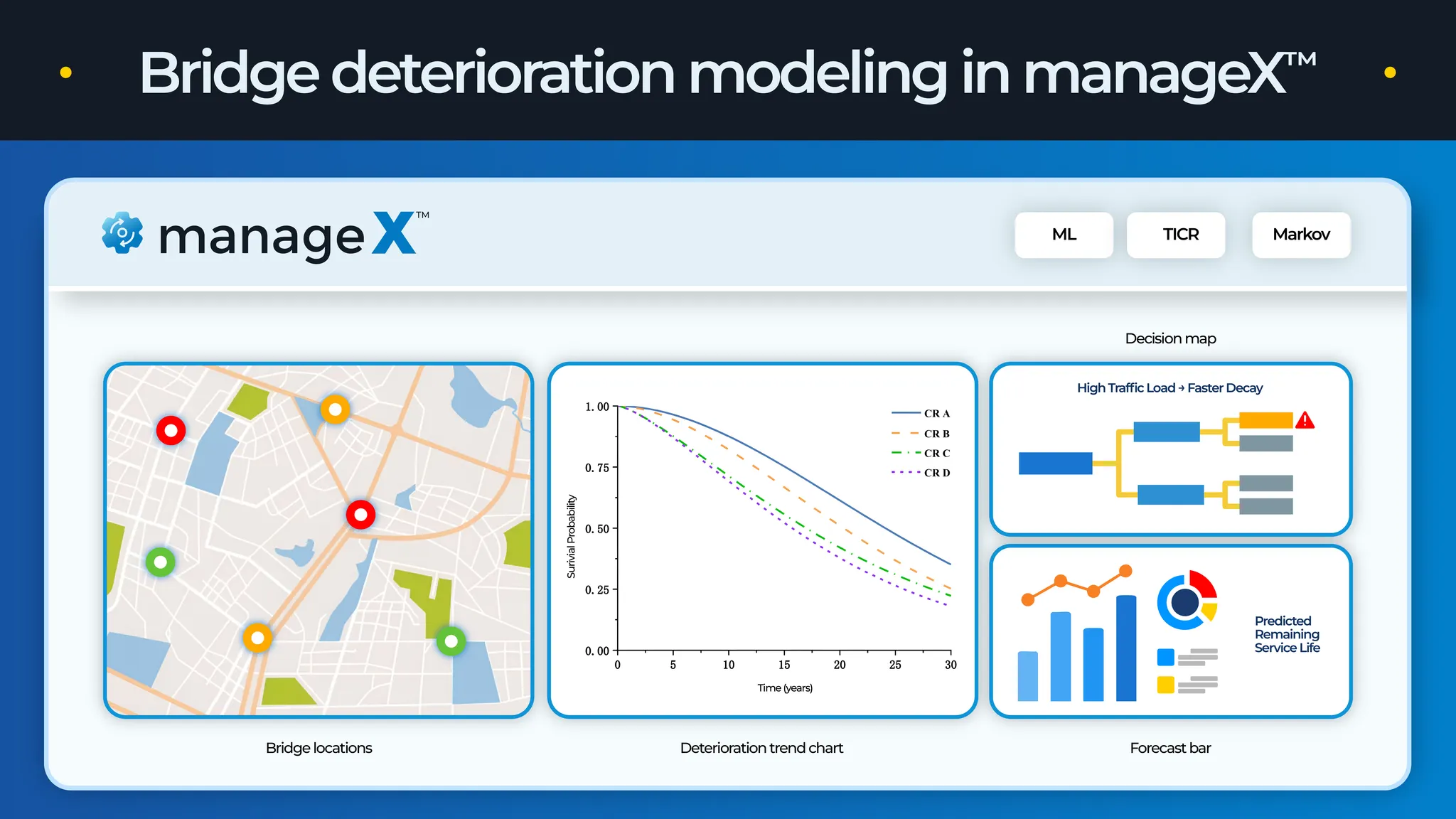

Bridge deterioration modeling in manageX™ Due to the large benefits of the Machine Learning bridge deterioration modeling method and practicality of the predictions provided through the TICR method, AssetIntel™ has developed an automatic Machine-Learning program that generates deterioration models for bridge components, in terms of Time-In-Condition-Rating.
By default, for each US State, it explores the entire history of their federal tape data, cleans it, and extracts sample data of TICR. Also, it explores a variety of ML models to find groups of components with similar deterioration trends. Then, it produces a decision tree that identifies the conditions for each deterioration group. These models can be used or modified for an Action Trigger model in a Bridge Management System, such as manageX™.
In addition, for elements, manageX™ predicts element deterioration based on Markov transition probabilities. Also, manageX™ uses these deterioration models to predict quantities of elements in various condition states.
Conclusion Turning Data into Decisions: The Power of Bridge Deterioration Modeling In general, Bridge deterioration models turb inspection data into actionable insights and predicts how components will perform in due course. By accounting for factors like environment, materials, structural design, traffic, and age, these bridge deterioration models allow proactive maintenance, smarter budgeting, and optimized resource allocation. Whether using Age-Based, TICR, Markov, or Machine Learning methods, accuracy depends on high-quality data and continuous validation. When applied effectively, these bridge deterioration modeling helps extend bridge service life, enhance safety, and reduce costs.
The question for bridge managers is not if, but how you will leverage predictive insights today to preserve the bridges of tomorrow.
